Product Summary
The 2MBI200N-060 is an IGBT modlue. The applications of the 2MBI200N-060 include (1)Inverter for Motor drive; (2)AC and DC Servo drive amplifier; (3)Uninterruptible power supply; (4)Industrial machines, such as Welding machines.
Parametrics
2MBI200N-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600 V; (2)Gate -Emitter Voltage, VGES: ±20 V; (3)collector current, continuous, IC: 200A; 1ms, IC pulse: 400A; continuous, -Ic: 200A; 1ms, -IC pulse: 400A; (4)Max. Power Dissipation, PC: 780 W; (5)Operating Temperature, Tj: +150℃; (6)Storage Temperature, Tstg: -40 ~ +125℃; (7)isolation voltage, AC 1 min, Vis: 2500V; (8)screw topque, mounting: 3.5N.m; terminals: 3.5N.m.
Features
2MBI200N-060 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure.

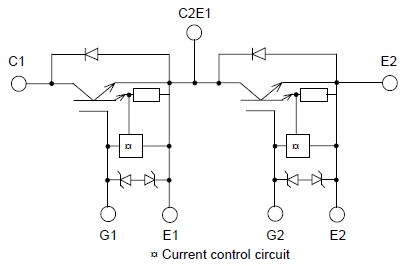

Diagrams
