Product Summary
The 2MBI300NB-060-01 is an IGBT module. The applications of it are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.
Parametrics
2MBI300NB-060-01 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 600V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, Ic: 300A; (4)Collector current, Ic pulse: 600A; (5)Collector current, -IC: 300A; (6)Collector current, -Icp: 600A; (7)Max. Power Dissipation, Pc: 1100W; (8)Operating temperature, Tj: +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 2500 VAC.
Features
2MBI300NB-060-01 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure.

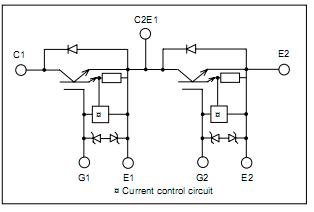

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300NB-060-01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
