Product Summary

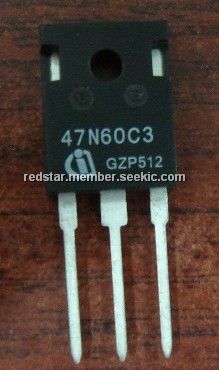

The 47N60C3 is a Cool MOS Power Transistor.

Parametrics

47N60C3 absolute maximum ratings: (1)Continuous drain current: 47 A at TC = 25 ℃, 30 A at TC = 100 ℃; (2)Pulsed drain current, tp limited by Tjmax: 141 A; (3)Avalanche energy, single pulse: 1800 mJ at ID = 10 A, VDD = 50 V; (4)Avalanche energy, repetitive tAR limited by Tjmax: 1 mJ at ID = 20 A, VDD = 50 V; (5)Avalanche current, repetitive tAR limited by Tjmax: 20 A; (6)Gate source voltage static: ±20 V; (7)Gate source voltage AC (f >1Hz): ±30 V; (8)Power dissipation, TC = 25℃: 415 W; (9)Operating and storage temperature: -55 to +150 ℃.

Features

47N60C3 features: (1)New revolutionary high voltage technology; (2)Worldwide best RDS(on) in TO 247; (3)Ultra low gate charge; (4)Periodic avalanche rated; (5)Extreme dv/dt rated; (6)Ultra low effective capacitances.

Diagrams

47N60C3 circuit
