Product Summary
The A6275ELW is an 8-bit serial-input, constantcurrent latched LED driver. It is specifically designed for LED display applications. Each BiCMOS device includes an 8-bit CMOS shift register, accompanying data latches, and eight npn constantcurrent sink drivers. Except for package style and allowable package power dissipation, the two devices are identical. The A6275ELW is available for operation over the standard temperature range of -20℃ to +85℃.
Parametrics
A6275ELW absolute maximum ratings: (1)Supply Voltage, VDD: 7.0 V; (2)Output Voltage Range, VO: -0.5 V to +17 V; (3)Output Current, IO: 90 mA; (4)Ground Current, IGND: 750 mA; (5)Input Voltage Range, VI: -0.4 V to VDD + 0.4 V; (6)Operating Temperature Range, TA: -40℃ to +85℃; (7)Storage Temperature Range, TS: -55℃ to +150℃.
Features
A6275ELW features: (1)To 90 mA Constant-Current Outputs; (2)Under-Voltage Lockout; (3)Low-Power CMOS Logic and Latches; (4)High Data Input Rate; (5)Pin-Compatible with TB62705CP.

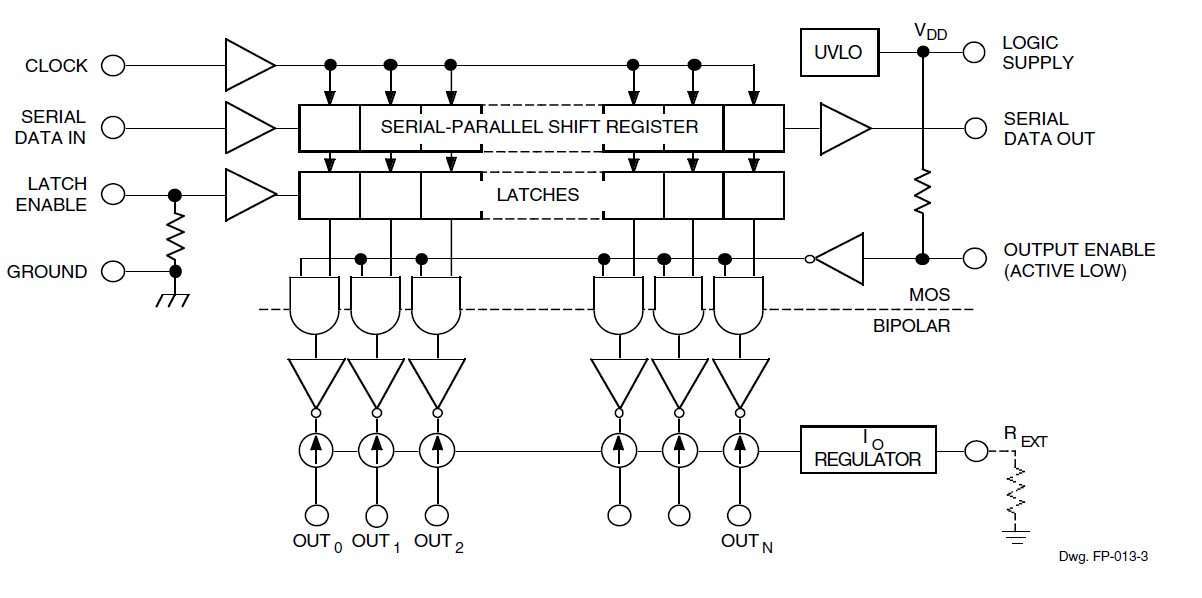

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 A6275ELW |
|
IC LED DRIVER LINEAR 16-SOIC |
Data Sheet |
Negotiable |
|
||||
|
A6275ELWTR |
|
IC LED DRIVER LINEAR 16-SOIC |
Data Sheet |
Negotiable |
|
||||
|
A6275ELWTR-T |
|
IC LED DRIVER LINEAR 16-SOIC |
Data Sheet |
Negotiable |
|
||||
