Product Summary

The HMC1052 is a magnetoresistive sensor designed for low field magnetic sensing. The advantage of the HMC1052 is in the near-perfectly orthogonal dual sensor on a single chip with shared set/reset and offset coils/straps included. The HMC1052 utilizes Honeywell’s Anisotropic Magnetoresistive (AMR) technology that provides advantages over coil based magnetic sensors. Applications for the HMC1052 include low cost Compassing, Magnetometry, and Current Sensing.

Parametrics

HMC1052 absolute maximum ratings: (1)Package/Case: 8 Pin SIP; (2)Sensing Range: ±6g; (3)Operating Temperature: -40 to 125℃; (4)Output Type: Differential Voltage; (5)Type: Linear; (6)Voltage - Supply: 1.8 V to 20 V; (7)Lead Free Status: Lead Free; (8)RoHS Status: RoHS Compliant.

Features

HMC1052 features: (1)Miniature Surface-Mount Packages; (2)Leaded and Leadless Packages; (3)Low Voltage Operations (1.8V); (4)Low Cost; (5)Tape & Reel Packaging Options; (6)4-Element Wheatstone Bridge; (7)Wide Magnetic Field Range (+/-6 Oe); (8)Patented Offset and Set/Reset Straps.

Diagrams

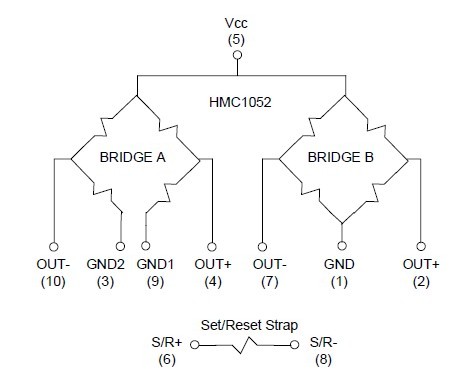

HMC1052 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HMC1052
HMC1052

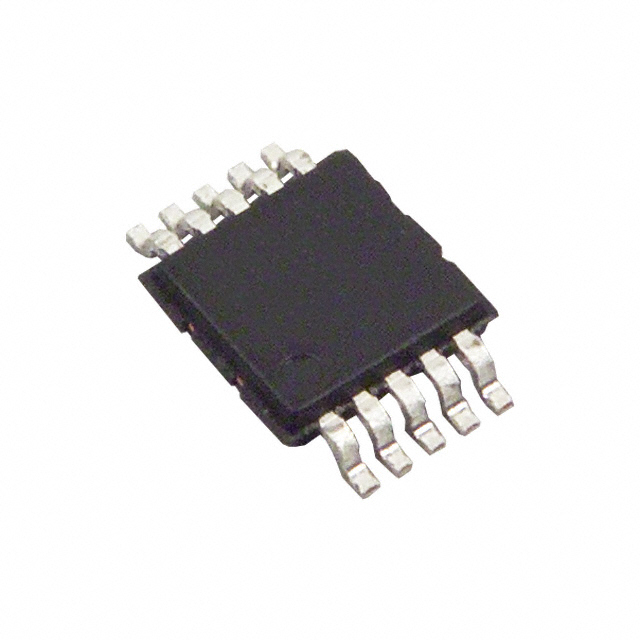

SENSOR MAGN 2 AXIS 10-MSOP
Data Sheet
Negotiable
HMC1052L
HMC1052L
Honeywell Microelectronics & Precision Sensors

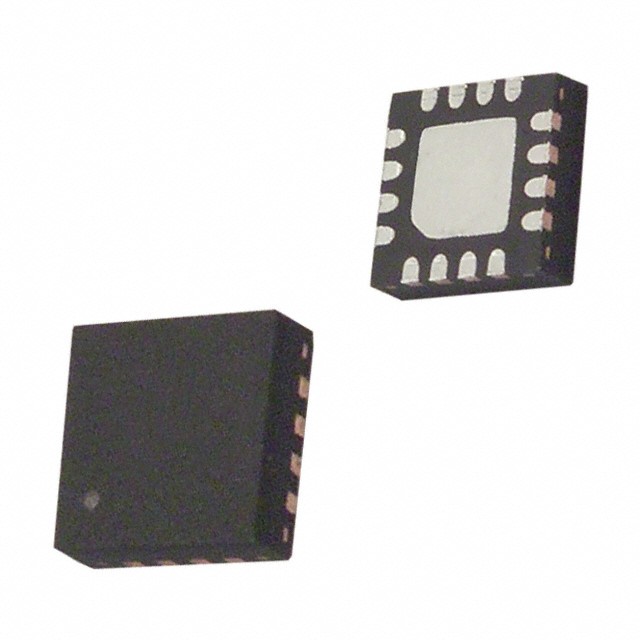

SENSOR MAGNETIC 2-AXIS 16-PLCC
