Product Summary

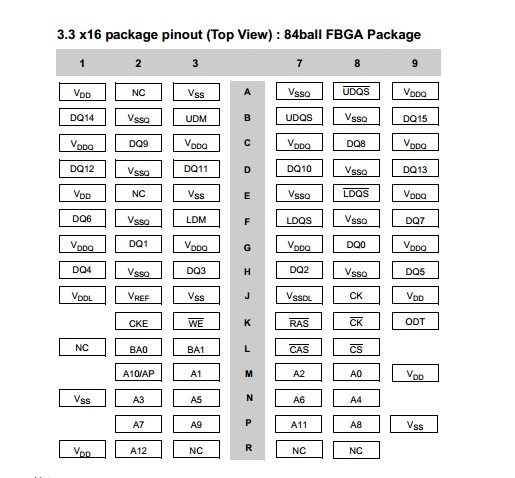

The K4T51163QG-HCE6 is a 512Mb G-die DDR2 SDRAM. The K4T51163QG-HCE6 is organized as a 32Mbit x 4 I/Os x 4banks or 16Mbit x 8 I/Os x 4banks or 8Mbit x 16 I/Os x 4 banks device. This synchronous device achieves high speed doubledata-rate transfer rates of up to 800Mb/sec/pin (DDR2-800) for general applications. The K4T51163QG-HCE6 is available in 60ball FBGAs(x8) and in 84ball FBGAs(x16).

Parametrics

K4T51163QG-HCE6 absolute maximum ratings: (1)VDD Voltage on VDD pin relative to VSS: - 1.0 V to 2.3 V ; (2)VDDQ Voltage on VDDQ pin relative to VSS: - 0.5 V to 2.3 V ; (3)VDDL Voltage on VDDL pin relative to VSS: - 0.5 V to 2.3 V; (4)VIN, VOUT Voltage on any pin relative to VSS: - 0.5 V to 2.3 V; (5)TSTG Storage Temperature: -55 to +100℃.

Features

K4T51163QG-HCE6 features: (1)JEDEC standard VDD = 1.8V ±0.1V Power Supply; (2)VDDQ = 1.8V ±0.1V; (3)200 MHz fCK for 400Mb/sec/pin, 267MHz fCK for 533Mb/sec/pin, 333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/sec/pin; (4)4 Banks; (5)Posted CAS; (6)Programmable CAS Latency: 3, 4, 5, 6; (7)Programmable Additive Latency: 0, 1 , 2 , 3, 4 , 5; (8)Write Latency(WL) = Read Latency(RL) -1; (9)Burst Length: 4 , 8(Interleave/Nibble sequential); (10)Programmable Sequential / Interleave Burst Mode; (11)Bi-directional Differential Data-Strobe (Single-ended datastrobe is an optional feature); (12)Off-Chip Driver(OCD) Impedance Adjustment; (13)On Die Termination; (14)Special Function Support.

Diagrams

K4T51163QG-HCE6 block diagram
