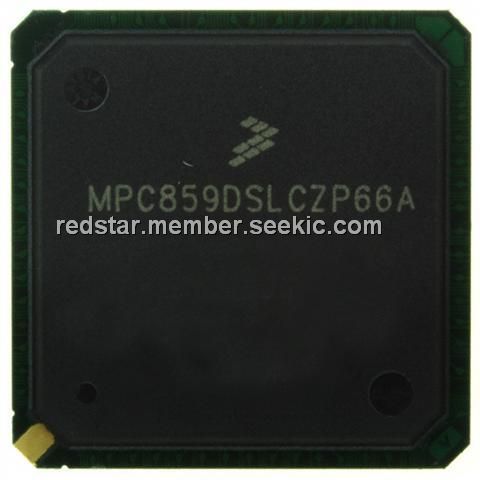

MPC859DSLZP66A

Supply voltage –0.3 to 4.0 V, 32-bit PowerPC core, Thirty-two address lines, Four baud rate generators

Rated 5 Rating 5 | reviews | Write a review

Price:: US $16.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $16.00~20.00

PartNumber:: MPC859DSLZP66A

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Alex's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:MPC859DSLZP66A
US $16.00 - 20.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MPC859DSLZP66A is a derivative of Freescale MPC860 PowerQUICC family of devices. MPC859DSLZP66A is a versatile single-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications and communications and networking systems. The MPC859DSLZP66A provides enhanced ATM functionality over that of other ATM-nabled members of the MPC860 family.

Parametrics

MPC859DSLZP66A absolute maximum ratings: (1)Supply voltage, VDDH: – 0.3 to 4.0 V; (2)VDDL: – 0.3 to 2.0 V; (3)VDDSYN: – 0.3 to 2.0 V; (4)Difference between VDDL to VDDSYN: 100 mV; (5)Input voltage Vin: GND – 0.3 to VDDH V; (6)Storage temperature range Tstg: –55 to +150 ℃.

Features

MPC859DSLZP66A features: (1)Embedded single-issue, 32-bit PowerPC core (implementing the PowerPC architecture) with thirty-two 32-bit general-purpose registers (GPRs); (2)The MPC866/859 provides enhanced ATM functionality over that of the MPC860SAR. The MPC866/859; (3)adds major new features available in enhanced SAR (ESAR) mode; (4)Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits); (5)Thirty-two address lines; (6)Memory controller (eight banks); (7)General-purpose timers; (8)Fast Ethernet controller (FEC); (9)System integration unit (SIU); (10)Four baud rate generators; (11)Two SMCs (serial management channels) (MPC859DSL has one SMC (SMC1) for UART.); (12)Normal high and normal low power modes to conserve power; (13)1.8 V core and 3.3 V I/O operation with 5-V TTL compatibility; refer to Table 6 for a listing of the 5-V tolerant pins.; (14)357-pin plastic ball grid array (PBGA) package; (15)Operation up to 133 MHz.
