Product Summary
The MRF148A is a N-channel MOS Linear RF Power Fet.
Parametrics
MRF148A absolute maximum ratings: (1)drain-source voltage: 120 V; (2)drain-gate voltage: 120 V; (3)gate-source voltage: ±40 V; (4)drain current-continuous: 6.0 A; (5)total device dissipation @ Tc=25℃: 115 W, derate above 25℃: 0.66 W/℃; (6)storage temperature range: -65 to +150 ℃; (7)operating junction temperature: 200 ℃.
Features
MRF148A features: (1)Superior high order IMD: IMD(d3) (30W PEP): -35dB (Typ.), IMD(d11) (30W PEP): -60dB (Typ.); (2)Specified 50V, 30MHz characteristics: Output power = 30 Watts, Power gain = 18 dB (Typ.), Efficiency = 40% (Typ.); (3)100% tested for load mismatch at all phase angles with 30:1 VSWR; (4)Lower reverse transfer capacitance (3.0 pF typ.).

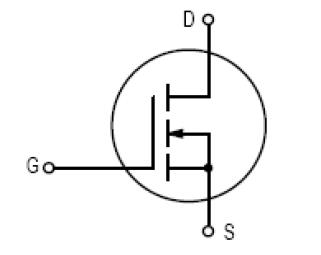

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF148A |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 5-175MHz 30Watts 50Volt Gain 18dB |
Data Sheet |
|
|
||||||||||||
