Product Summary
The PT4800F is a thin type phototransistor. It is used in VCRs, Floppy disk drives.
Parametrics
PT4800F absolute maximum ratings: (1)Collector-emitter voltage VCEO: 35 V; (2)Emitter-collector voltage VECO: 6 V; (3)Collector current IC: 20 mA; (4)Collector power dissipation PC: 75 mW; (5)Operating temperature Topr: - 25 to + 85 ℃; (6)Storage temperature Tstg: - 40 to + 85 ℃; (7)Soldering temperature Tsol: 260 ℃.
Features
PT4800F features: (1)Thin type package( Thickness : 1.5mm ); (2)Visible light cut-off type; (3)Thin type.

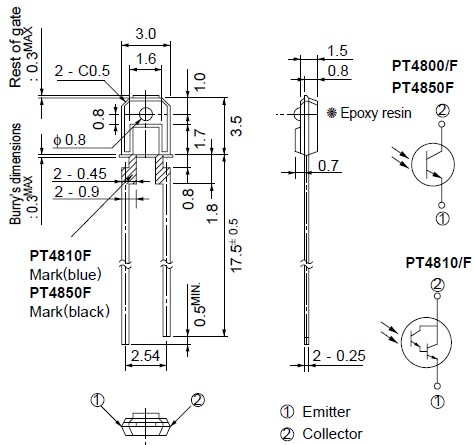

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PT4800F |
|
PHOTO TRANS BLACK LEN 860NM SIDE |
Data Sheet |
Negotiable |
|
||||
 |
PT4800FB |
|
PHOTO TRANS BLACK LEN 860NM SIDE |
Data Sheet |
Negotiable |
|
||||
 |
PT4800FBE00F |
Sharp Microelectronics |
Photodetector Transistors PT4800F with Ic bin 0.15-0.38mA |
Data Sheet |
Negotiable |
|
||||
|
PT4800FE000F |
Sharp Microelectronics |
Photodetector Transistors BLACK LENS 860NM |
Data Sheet |
Negotiable |
|
||||
