Product Summary

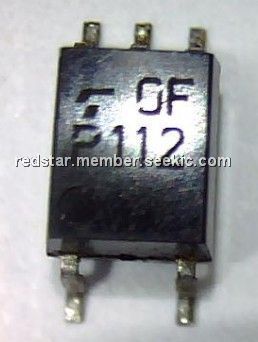

The TOSHIBA mini flat coupler TLP112 is a small outline coupler, suitable for surface mount assembly. TLP112 consists of a GaAAs light emitting diode, optically coupled to a high speed detector of one chip photodiode-transistor.
Parametrics
TLP112 absolute maximum ratings: (1)Forward current (Note 1) IF: 25 mA; (2)Pulse forward current (Note 2) IFP: 50 mA; (3)Peak transient forward current (Note 3) IFPT: 1 A; (4)Reverse voltage VR: 5 V; (5)Diode power dissipation (Note 4) PD: 45 mW; (6)Output current IO: 8 mA; (7)Peak output current IOP 16 mA; (8)Supply voltage VCC: -0.5~15 V; (9)Output voltage VO: -0.5~15 V; (10)Output power dissipation (Note 5) Po 100 mW; (11)Operating temperature range Topr: -55~100 ℃; (12)Storage temperature range Tstg: -55~125 ℃; (13)Lead soldering temperature(10s) Tsol: 260 ℃; (14)Isolation voltage, (AC, 1 min., R.H ≤ 60%, Note 6) BVS: 2500 Vrms.
Features
TLP112 features: (1)Isolation voltage: 2500 Vrms (min.); (2)Switching speed: tpHL = 0.8μs, tpLH = 2 μs(max.), (RL = 4.1 kΩ); (3)TTL compatible; (4)UL recognized: UL1577, file no. E67349.
Diagrams
