Product Summary

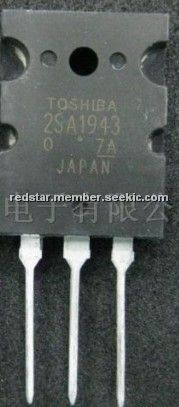

The 2SA1943 is a TOSHIBA transistor with silicon PNP triple diffused type.

Parametrics

2SA1943 absolute maximum ratings: (1)Collector-base voltage, VCBO: -230V; (2)Collector-emitter voltage, VCEO: -230V; (3)Emitter-base voltage, VEBO: -5V; (4)Collector current, IC: -15A; (5)Base current, IB: -1.5A; (6)Collector power dissipation (Tc = 25℃), PC: 150W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature range, Tstg: -55 to 150℃.

Features

2SA1943 features: (1)High collector voltage: VCEO = -230V (min); (2)Complementary to 2SC5200; (3)Recommended for 100W high-fidelity audio frequency amplifier output stage.

Diagrams

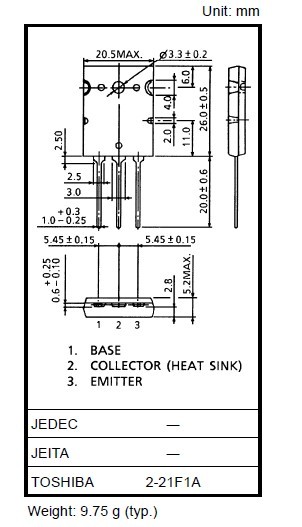

2SA1943 package dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2SA1943
2SA1943
Other

Data Sheet
Negotiable
2SA1943-O
2SA1943-O

TRANS PNP -230V -15A TO-3PL
Data Sheet
Negotiable
2SA1943-O(Q)
2SA1943-O(Q)
Toshiba
Transistors Bipolar (BJT) PNP 230V 15A
Data Sheet
0-1: $1.93
1-10: $1.54
10-100: $1.20
100-250: $1.13
