Product Summary

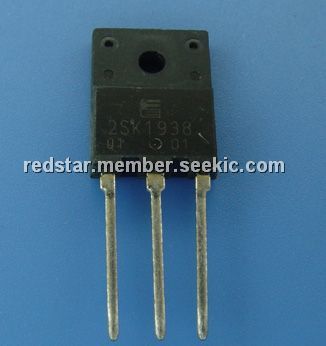

The 2SK1938 is a N-channel MOS-FET.
Parametrics
2SK1938 absolute maximum ratings: (1)Drain-Source-Voltage V DS: 500 V; (2)Drain-Gate-Voltage (RGS=20KW) V DGR: 500 V; (3)Continous Drain Current I D: ±18 A; (4)Pulsed Drain Current I D(puls): ±72 A; (5)Gate-Source-Voltage V GS: ±30 V; (6)Max. Power Dissipation P D: 100 W; (7)Operating and Storage Temperature Range T ch: 150 ℃; (8)T stg: -55 ~ +150 ℃.
Features
2SK1938 features: (1)High Speed Switching; (2)Low On-Resistance; (3)No Secondary Breakdown; (4)Low Driving Power; (5)High Voltage; (6)VGS = ± 30V Guarantee; (7) Avalanche Proof.

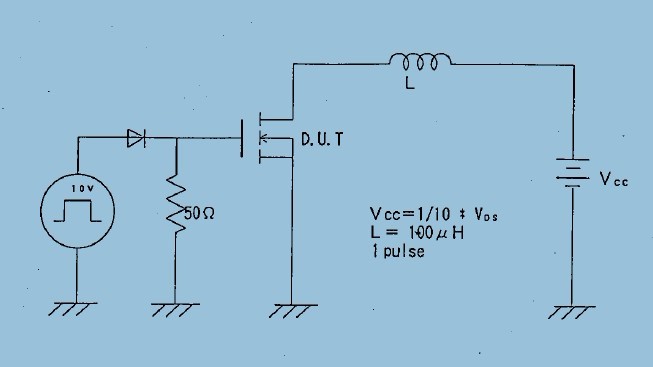

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK1938-01R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
