Product Summary

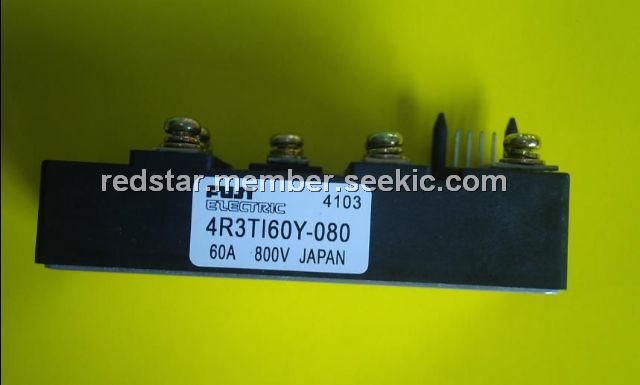

The 4R3TI60Y-080 is a diode and tyristor module. The applications of it are inverters, battery chargers, DC motors, general purpose DC power supplies.

Parametrics

4R3TI60Y-080 absolute maximum ratings: (1)VRRM:800V; (2)VDRM:800V; (3)VRSM:900V; (4)ID(AV):60A; (5)ITSM:1000A; (6)I2t:4150A2s; (7)Tj:-40 to +125℃; (8)Tstg:-40 to +125℃; (9)di/dt:100A/us; (10)IFGM:2A; (11)PGM:5W; (12)PG(AV):0.5W; (13)VRGM:5V.

Features

4R3TI60Y-080 features: (1)class passivation chip; (2)easy connection; (3)insulated type; (4)large di/dt; (5)large dv/dt.

Diagrams

4R3TI60Y-080 circuit diagram
