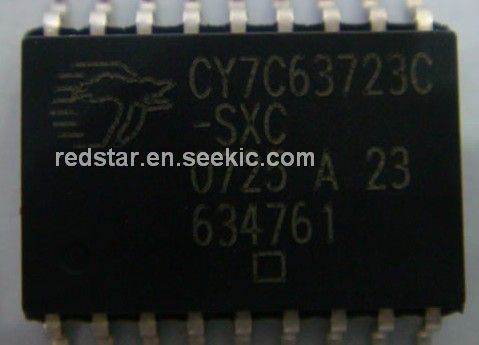

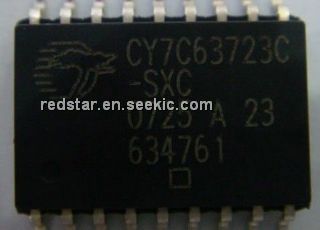

CY7C63723C-SXC

Product Summary

The CY7C63723C-SXC is an 8-bit RISC one-time-programmable (OTP) microcontroller. The instruction set has been optimized specifically for USB and PS/2 operations, although the CY7C63723C-SXC can be used for a variety of other embedded applications. The CY7C63723C-SXC features up to 16 GPIO pins to support USB, PS/2 and other applications. The I/O pins are grouped into two ports (Port 0 to 1) where each pin can be individually configured as inputs with internal pull-ups, open drain outputs, or traditional CMOS outputs with programmable drive strength of up to 50 mA output drive. Additionally, each I/O pin can be used to generate a GPIO interrupt to the microcontroller. Note the GPIO interrupts all share the same “GPIO” interrupt vector.

Parametrics

CY7C63723C-SXC absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –0℃ to +70°C; (3)Supply Voltage on VCC Relative to VSS: –0.5V to +7.0V; (4)DC Input Voltage: –0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to + VCC+0.5V; (6)Maximum Total Sink Output Current into Port 0 and 1 and Pins70 mA; (7)Maximum Total Source Output Current into Port 0 and 1 and Pins30 mA; (8)Maximum On-chip Power Dissipation on any GPIO Pin50 mW; (9)Power Dissipation: 300 mW; (10)Static Discharge Voltage: ＞ 2000V; (11)Latch-up Current: ＞200 mA.

Features

CY7C63723C-SXC features: (1)enCoRe USB - enhanced Component Reduction; (2)USB Specification Compliance; (3)8-bit RISC microcontroller; (4)I/O ports; (5)SPI serial communication block; (6)Four 8-bit Input Capture registers; (7)Internal low-power wake-up timer during suspend mode; (8)Watchdog Reset (WDR); (9)Low-voltage Reset at 3.75V; (10)Internal brown-out reset for suspend mode; (11)Improved output drivers to reduce EMI; (12)Operating voltage from 4.0V to 5.5VDC; (13)Operating temperature from 0 to 70℃; (14)CY7C63723C available in 18-pin SOIC, 18-pin PDIP; (15)CY7C63743C available in 24-pin SOIC, 24-pin PDIP, 24-pin QSOP; (16)CY7C63722C available in DIE form; (17)Industry standard programmer support.

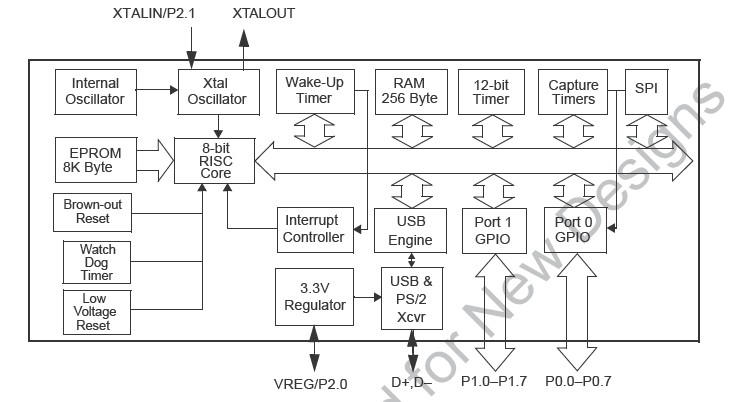

Diagrams
