Product Summary
The KTC1027 is a Epitaxial planar NPN transistor.
Parametrics
KTC1027 absolute maximum ratings: (1)Collector-Base Voltage VCBO: 120 V; (2)Collector-Emitter Voltage VCEO: 120 V; (3)Emitter-Base Voltage VEBO: 5 V; (4)Collector Current IC: 800 mA; (5)Emitter Current IE: -800 mA; (6)Collector Power Dissipation PC: 1 W; (7)Junction Temperature Tj: 150℃; (8)Storage Temperature Range Tstg: -55 to 150℃.
Features
KTC1027 features: (1)Complementary to KTA1023.

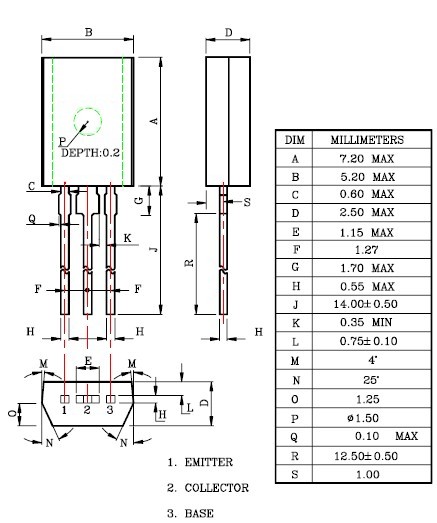

Diagrams
