Product Summary

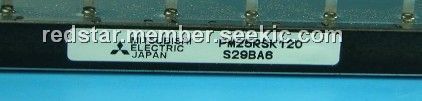

The PM25RSK120 is a Powerex Intellimod Intelligent Power Module. It is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM25RSK120 are Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM25RSK120 absolute maximum ratings: (1)Junction Temperature:–20 to 150℃; (2)Storage Temperature:–40 to 125℃; (3)Case Operating Temperature:-20 to 100℃; (4)Mounting Torque M4 Mounting Screws:13 in-lb; (5)Module Weight (Typical):130 Grams; (6)Supply Voltage Protected by OC and SC:800 Volts; (7)Isolation Voltage, AC 1 Minute, 60Hz Sinusoidal:2500 Volts.
Features
PM25RSK120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic; (4)Short Circuit; (5)Over Current; (6)Over Temperature; (7)Under Voltage.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM25RSK120 |
|
MOD IPM 7PAC 1200V 25A |
Data Sheet |
Negotiable |
|
||||||
