Product Summary

The MAX3483ESA is a complete high performance 24-bit 48/96/192 kHz stereo digital-to-analog conversion system. The MAX3483ESA transmit at up to 10Mbps. The applications of the MAX3483ESA include Low-Power RS-485/RS-422 Transceivers, Telecommunications, Transceivers for EMI-Sensitive Applications and Industrial-Control Local Area Networks.

Parametrics

MAX3483ESA absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Control Input Voltage (RE, DE): -0.3V to 7V; (3)Driver Input Voltage (DI): -0.3V to 7V; (4)Driver Output Voltage (A, B, Y, Z): -7.5V to 12.5V; (5)Receiver Input Voltage (A, B): -7.5V to 12.5V; (6)Receiver Output Voltage (RO): -0.3V to (VCC + 0.3V); (7)Continuous Power Dissipation: 727mW; (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3483ESA features: (1)Operate from a Single 3.3V Supply—No Charge Pump; (2)Interoperable with +5V Logic; (3)8ns Max Skew; (4)2nA Low-Current Shutdown Mode; (5)-7V to +12V Common-Mode Input Voltage Range; (6)Allows up to 32 Transceivers on the Bus; (7)Full-Duplex and Half-Duplex Versions Available; (8)Industry Standard 75176 Pinout; (9)Current-Limiting and Thermal Shutdown for Driver Overload Protection.

Diagrams

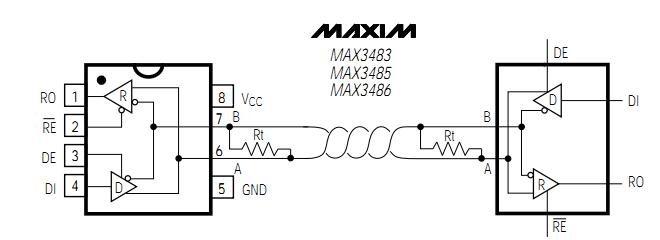

MAX3483ESA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX3483ESA
MAX3483ESA
Maxim Integrated Products
RS-422/RS-485 Interface IC
Data Sheet
Negotiable
MAX3483ESA+
MAX3483ESA+
Maxim Integrated Products
RS-422/RS-485 Interface IC 3.3V 10Mbps Transceiver
Data Sheet
0-1: $3.31
1-25: $2.23
25-50: $1.61
50-100: $1.60
MAX3483ESA+T
MAX3483ESA+T
Maxim Integrated Products
RS-422/RS-485 Interface IC 3.3V 10Mbps Transceiver
Data Sheet
0-2080: $1.39
2080-2500: $1.39
MAX3483ESA-T
MAX3483ESA-T
Maxim Integrated Products
RS-422/RS-485 Interface IC
Data Sheet
Negotiable
