Product Summary
The LV574A is an octal edge-triggered D-type flip-flop designed for 2-V to 5.5-V VCC operation. The device features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The LV574A is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Parametrics
LV574A absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 V to 7 V; (4)Output voltage range applied in the high or low state, VO: -0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): -20 mA; (6)Output clamp current, IOK (VO < 0): -50 mA; (7)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (8)Continuous current through VCC or GND: ±70 mA; (9)Package thermal impedance, θJA: 70℃/W ; (10)Storage temperature range, Tstg: -65 to 150℃.
Features
LV574A features: (1)2-V to 5.5-V VCC Operation; (2)Max tpd of 10 ns at 5 V; (3)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (4)Typical VOHV (Output VOH Undershoot)>2.3 V at VCC = 3.3 V, TA = 25℃; (5)Support Mixed-Mode Voltage Operation on All Ports; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17; (8)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model.

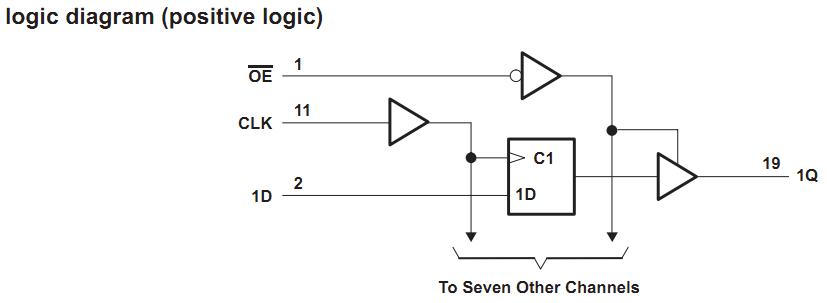

Diagrams
 |
