MHPM7A25A120B

hybrid power module, 1600V, 25A, UL Recognition Pending, Short Circuit Rated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $65.00~86.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $65.00~86.00

PartNumber:: MHPM7A25A120B

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Alex's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-12

From Other Seller

Part Number:MHPM7A25A120B
US $65.00 - 86.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

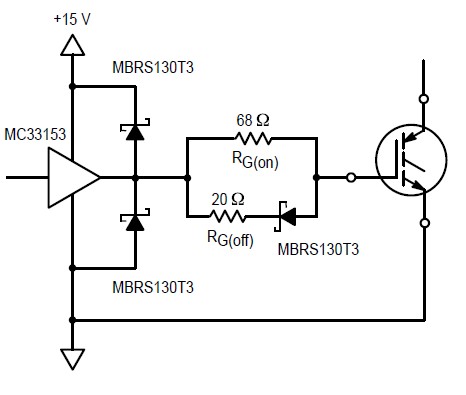

Product Summary

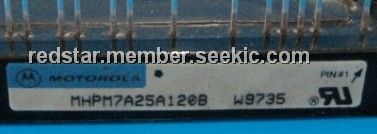

The MHPM7A25A120B is a hybrid power module. It integrates a 3–phase inverter, 3–phase rectifier, brake, and temperature sense in a single convenient package. The MHPM7A25A120B is designed for 5.0 hp general purpose 3–phase induction motor drive applications. The inverter incorporates advanced insulated gate bipolar transistors (IGBT) matched with fast soft free–wheeling diodes to give optimum performance. The solderable top connector pins are designed for easy interfacing to control board.

Parametrics

MHPM7A25A120B absolute maximum ratings: (1)Repetitive Peak Input Rectifier Reverse Voltage (TJ = 25℃ to 150℃) VRRM: 900 V; (2)Non–Repetitive Peak Input Rectifier Reverse Voltage(TJ = 25℃ to 150℃) VRSM: 1600 V; (3)IGBT Reverse Voltage VCES: 1200 V; (4)Gate-Emitter Voltage VGES: ±20 V; (5)Continuous IGBT Collector Current (TC = 80℃) ICmax: 25 A; (6)Repetitive Peak IGBT Collector Current IC(pk): 50 A; (7)Continuous Free–Wheeling Diode Current (TC = 25℃) IFmax: 25 A; (8)Continuous Free–Wheeling Diode Current (TC = 80℃) IF80: 16.5 A; (9)Repetitive Peak Free–Wheeling Diode Current IF(pk): 50 A; (10)Average Converter Output Current (Peak–to–Average ratio of 10, TC = 95℃) IOmax: 23.4 A.

Features

MHPM7A25A120B features: (1)Short Circuit Rated 10 μs @ 125℃, 720 V; (2)Pin-to-Baseplate Isolation Exceeds 2500 Vac (rms); (3)Compact Package Outline; (4)Access to Positive and Negative DC Bus; (5)Independent Brake Circuit Connections; (6)UL Recognition Pending.
