Product Summary

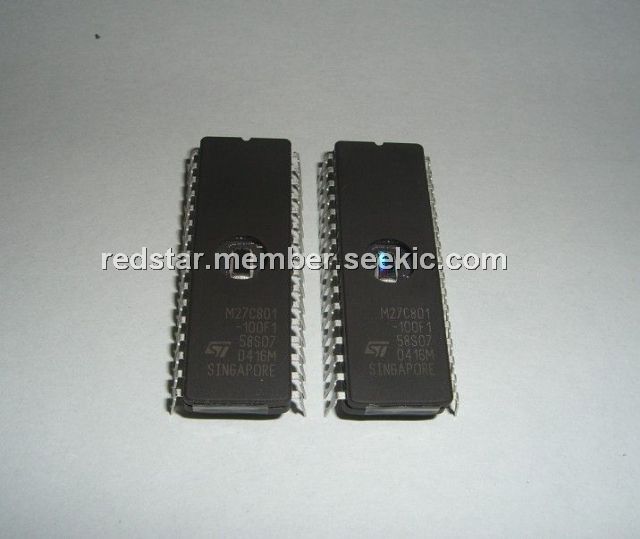

The M27C801-100F1 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). The M27C801-100F1 is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C801-100F1 is offered in PDIP32 and PLCC32 packages.
Parametrics
M27C801-100F1 absolute maximum ratings: (1)Ambient operating temperature :–40℃ to 125℃; (2)Temperature under bias:–50℃ to 125℃; (3)Storage temperature:–65℃ to 150℃; (4)Input or output voltage (except A9):–2V to 7V; (5)Supply voltage:–2V to 7V; (6)A9 voltage:–2V to 13.5V; (7)Program supply voltage:–2V to 14V.
Features
M27C801-100F1 features: (1)5 V ± 10% supply voltage in Read operation; (2)Access time: 55 ns; (3)low Power Consumption: Active current: 35 mA at 5 MHz, Standby current: 100 μA; (4)Programming voltage: 12.75 V ± 0.25 V; (5)Programming time: 50 μs/word; (6)Electronic signature: Manufacturer code: 20h, Device code: 42h; (7)ECOPACK packages available.

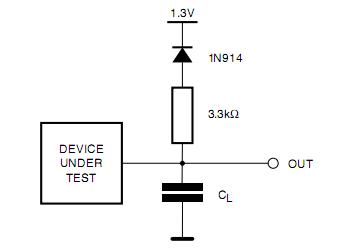

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C801-100F1 |
STMicroelectronics |
EPROM 8M (1Mx8) 100ns |
Data Sheet |
Negotiable |
|
||||
