IR2117S

IC mosfet driver, SGL-CH 8-SOIC, IR2117S, MOSFET/IGBT driver, DIP8, 0.3 to 625V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.38~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.38~0.80

PartNumber:: IR2117S

Brand:: International Rectifier - IR | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Alex's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:IR2117S
US $0.38 - 0.80
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

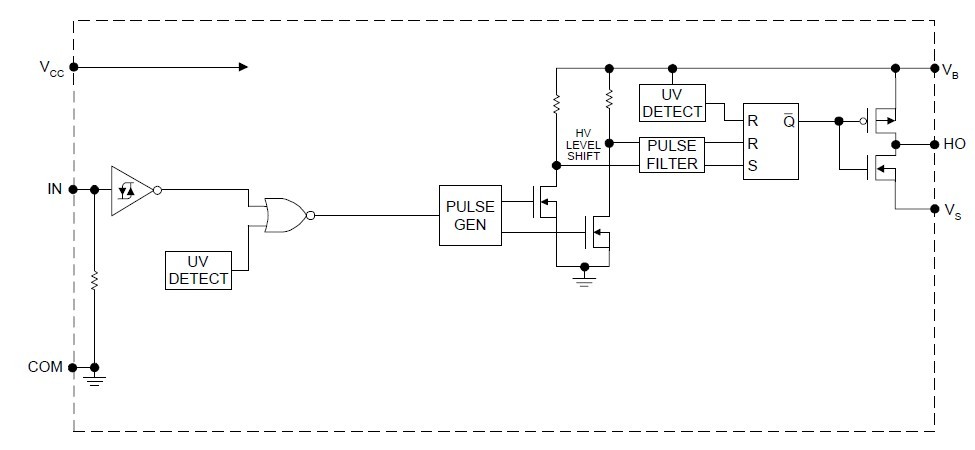

The IR2117S is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input of the IR2117S is compatible with standard CMOS outputs. The output driver features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high or low side configuration which operates up to 600 volts.

Parametrics

IR2117S absolute maxing ratings: (1)VB High side floating supply voltage: min=-0.3V max=625V; (2)VS High side floating supply offset voltage: min=VB-25V max=VB+0.3V; (3)VHO High side floating output voltage: min=VS-0.3V max=VB+0.3V; (4)VCC Logic supply voltage: min=-0.3V max=25V; (5)VIN Logic input voltage: min=-0.3V max=VCC+0.3V; (6)dVs/dt Allowable offset supply voltage transient: max=50V/ns; (7)PD Package power dissipation@TA≤+25℃(8 lead PDIP): max=1.0W; (8 lead SOIC): max=0.625W; (8)RthJA Thermal resistance, junction to ambient (8 lead PDIP): max=125℃/W; (8 lead SOIC): max=200℃/W; (9)TJ Junction temperature: max=150℃; (10)TS Storage temperature: min=-55℃ max=150℃; (11)TL Lead temperature (soldering, 10 seconds): max=300℃.

Features

IR2117S features: (1)Floating channel designed for bootstrap operation, Fully operational to +600V, Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout; (4)CMOS Schmitt-triggered inputs with pull-down; (5)Output in phase with input (IR2117) or out of phase with input (IR2118); (6)Also available LEAD-FREE.
