Product Summary
The MHW1815 is a Microwave Bipolar Power Amplifier.
Parametrics
MHW1815 absolute maximum ratings: (1)DC Supply Voltage VS: 28 Vdc; (2)DC Bias Voltage VB: 5.5 Vdc; (3)RF Input Power Pin: 17 dBm; (4)RF Output Power Pout: 23 W; (5)Operating Case Temperature Range TC: –30 to +85 ℃; (6)Storage Temperature Range Tstg : –30 to +100 ℃.
Features
MHW1815 features: (1)Specified 26 Volt Characteristics: RF Output Power: 15 Watts; (2)RF Power Gain: 32 dB Typ; (3)Efficiency: 25% Min; (4)50 Ohm Input/Output System.

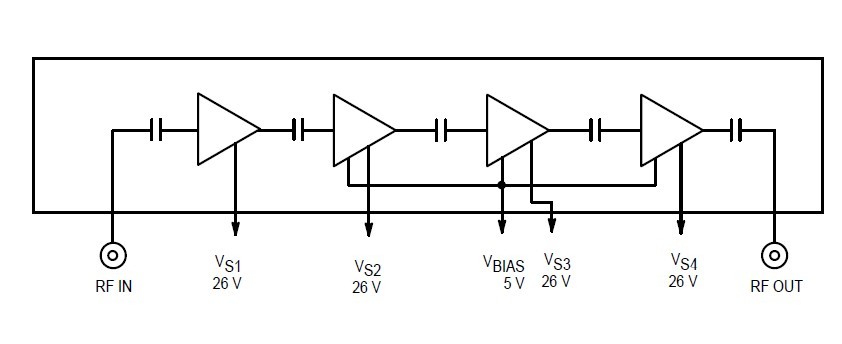

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW1815 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
