Product Summary

The CS9803GP is a passive infra-red controller, using analog mixing digital design technique and manufactures by CMOS process which can either driver TRIAC or RELAY depending on user choice. With special noise immunity technique, CS9803GP is the most stable passive infrared controller you can find on the market. More than this, there are few components needed in its application circuit which can reduce material cost and increase competitive.

Parametrics

CS9803GP absolute maximum ratings: (1)Supply Voltage:-0.3~6.0V; (2)Operating Temperature:-25~+70℃; (3)Input Voltage:-0.5~(VDD+0.5)V; (4)Storage Temperature:-55~+150℃; (5)Power Dissipation:500mW.

Features

CS9803GP features: (1)Operating voltage: 4.5V~5.5V (DC); (2)Operating current≤1mA; (3)CDS input; (4)Pulse output for TRIAC drive or level output for relay drive; (5)Built-in 2-stage operational amplifier; (6)Adjustable output on time duration; (7)On –chip regulator for PIR sensor; (8)Zero-crossing triggering; (9)Application: Home security system; (10)Package: DIP16.

Diagrams

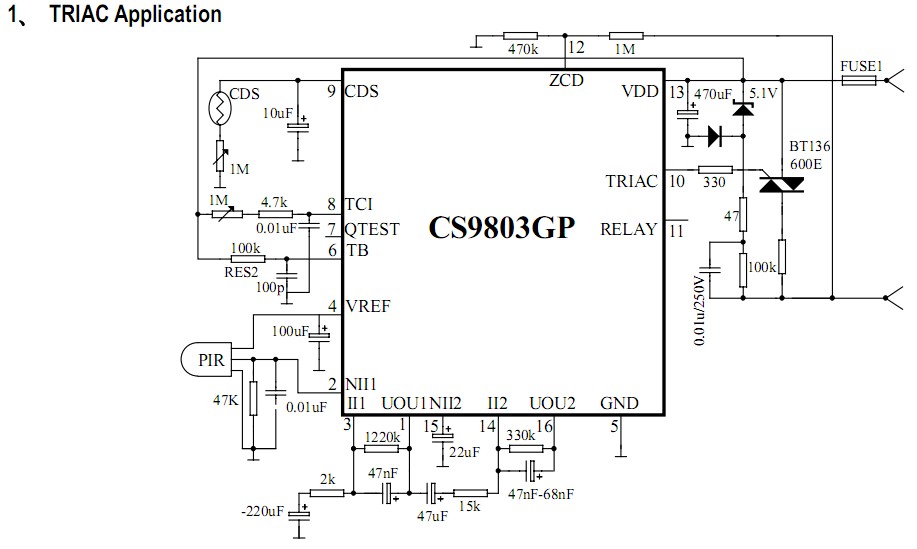

CS9803GP typical application circuit
