Product Summary

With on-chip Power-On Reset, VDD monitor, Voltage Regulator, Watchdog Timer, and clock oscillator, the C8051F320-GQ is a truly stand-alone System-on-a-Chip solution. The FLASH memory can be reprogrammed in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. The C8051F320-GQ is specified for 2.7 V- to-3.6 V operation over the industrial temperature range (-40℃ to +85℃). The Port I/O and /RST pins are tolerant of input signals up to 5 V. The C8051F320-GQ is available in a 32-pin LQFP or a 28-pin MLP package.

Parametrics

C8051F320-GQ absolute maximum ratings: (1)Ambient temperature under bias: -55 to 125 ℃; (2)Storage Temperature: -65 to 150 ℃; (3)Voltage on any Port I/O Pin or /RST with respect to GND: -0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: -0.3 to 4.2 V; (5)Maximum Total current through VDD and GND: 500 mA; (6)Maximum output current sunk by /RST or any Port pin: 100 mA.

Features

C8051F320-GQ features: (1)High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS); (2)In-system, full-speed, non-intrusive debug interface (on-chip); (3)Universal Serial Bus (USB) Function Controller with eight flexible endpoint pipes, integrated transceiver, and 1k FIFO RAM; (4)Supply Voltage Regulator (5V-to-3V); (5)True 10-bit 200 ksps 17-channel single-ended/differential ADC with analog multiplexer; (6)On-chip Voltage Reference and Temperature Sensor; (7)On-chip Voltage Comparators; (8)Precision programmable 12 MHz internal oscillator and 4x clock multiplier; (9)16k bytes of on-chip FLASH memory.

Diagrams

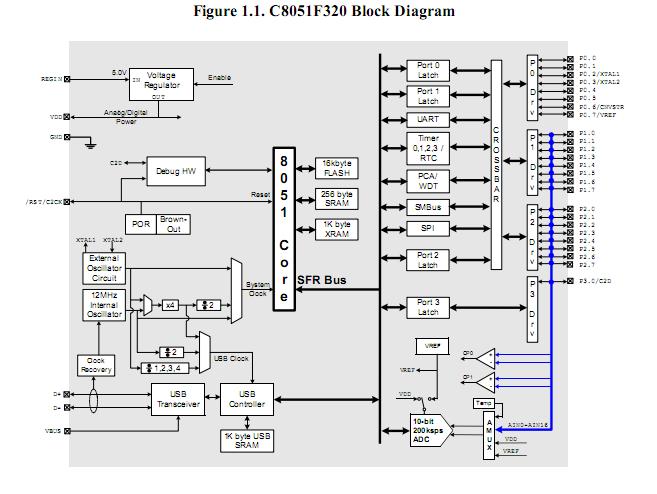

C8051F320-GQ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
C8051F320-GQ
C8051F320-GQ
Silicon Labs
8-bit Microcontrollers (MCU) 16KB 10ADC USB 32P MCU Rev E
Data Sheet
