Product Summary
The PCD5003H is a very low power POCSAG decoder and pager controller. It supports data rates of 512, 1200 and 2400 bits/s using a single 76.8 kHz crystal. On-chip EEPROM is programmable using a minimum supply voltage of 2.0 V, allowing ‘over-the-air’ programming. The PCD5003H is fast I2C-bus compatible(maximum 400 kbits/s). The applications of the PCD5003H are Display pagers, basic alert-only pagers, Information services, Personal organizers, Telepoint, Telemetry/data transmission.
Parametrics
PCD5003H absolute maximum ratings: (1)supply voltage:-0.5 to +7.0V; (2)external reference voltage input:-0.5 to +7.0V; (3)voltage on pins ALC, DON, RST, SDA and SCL:VSS-0.8 to VPR+0.8V; (4)voltage on any other pin:VSS-0.8 to VDD+0.8V; (5)total power dissipation:250mW; (6)power dissipation per output:100mW; (7)operating ambient temperature:-25 to +70℃; (8)storage temperature:-55 to +125℃.
Features
PCD5003H features: (1)Wide operating supply voltage range: 1.5 to 6.0 V; (2)EEPROM programming requires only 2.0 V supply; (3)Low operating current: 50 μA typ. (ON),25 μA typ. (OFF); (4)Temperature range: -25 to +70℃; (5)“CCIR Radio paging Code No. 1” (POCSAG) compatible; (6)512, 1200 and 2400 bits/s data rates using 76.8 kHz crystal; (7)Built-in data filter (16-times oversampling) and bit clock recovery; (8)Advanced ACCESS synchronization algorithm; (9)2-bit random and (optional) 4-bit burst error correction; (10)Up to 6 user addresses (RICs), each with 4 functions/alert cadences; (11)Up to 6 user address frames, independently programmable; (12)Standard POCSAG sync word, plus up to 4 user programmable sync words; (13)Received data inversion (optional); (14)Call alert via beeper, vibrator or LED; (15)2-level acoustic alert using single external transistor.

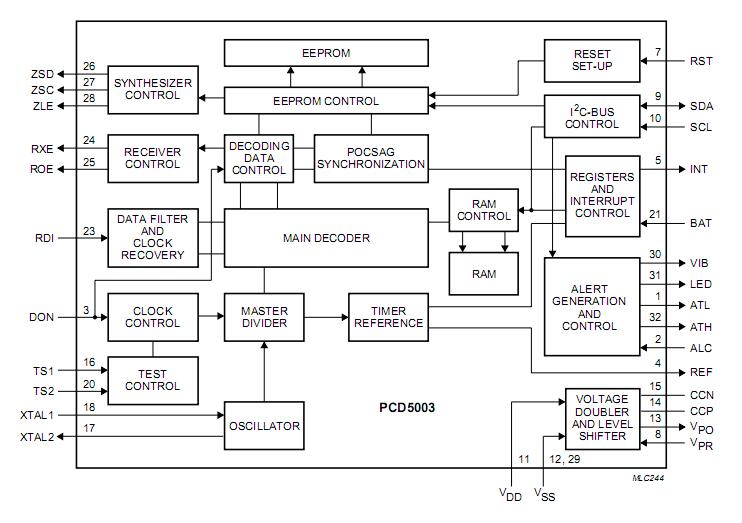

Diagrams
 |
