Product Summary

The PI49FCT3805HC is a 3.3V fast CMOS buffer/clock driver. It is designed with two independent groups of buffers. These buffers have 3-state Output Enable inputs (active LOW) with a 1-in, 5-out configuration per group. The PI49FCT3805HC consists of two banks of drivers, driving five outputs each from a standard TTL compatible CMOS input.

Parametrics

PI49FCT3805HC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –40℃ to +85℃; (3)Supply Voltage to Ground Potential (Inputs & Vcc Only): –0.5V to +7.0V; (4)Supply Voltage to Ground Potential (Outputs & I/O Only): –0.5V to +7.0V; (5)DC Input Voltage: –0.5V to +7.0V; (6)DC Output Current: 120 mA; (7)Power Dissipation: 0.5W.

Features

PI49FCT3805HC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –40℃ to +85℃; (3)Supply Voltage to Ground Potential (Inputs & Vcc Only): –0.5V to +7.0V; (4)Supply Voltage to Ground Potential (Outputs & I/O Only): –0.5V to +7.0V; (5)DC Input Voltage: –0.5V to +7.0V; (6)DC Output Current: 120 mA; (7)Power Dissipation: 0.5W.

Diagrams

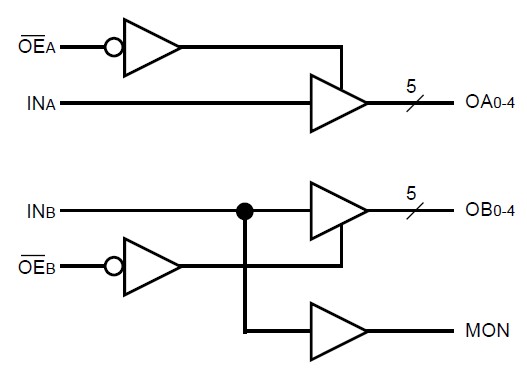

PI49FCT3805HC block diagram
