The PT76S16 is a diode module. The device is suitable for rectified for general use.
Parametrics
PT76S16 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1200V; (2)Non Repetitive Peak Reverse Voltage, VRSM: 1300V; (3)Average Rectified Output Current, IO(AV): 75A when 3-Phase Full Wave Rectified, Tc=Tt(Terminal)=75℃; (4)Surge Forward Current, IFSM: 540A when 50 Hz Half Sine Wave, 1Pulse Non-repetitive; (5)I Squared t, I2t: 1500 A2s when 2msec to 10msec; (6)Operating JunctionTemperature Range, Tjw: -40 to +125℃; (7)Storage Temperature Range, Tst:g -40 to +125℃; (8)Isoration Voltage, Viso: 2500V when Base Plate to Terminals, AC1min; (9)Mounting torque, Case mounting, Ftor: 2.4 to 2.8Nm; Terminals, Ftor: 2.4 to 2.8 Nm.
Features

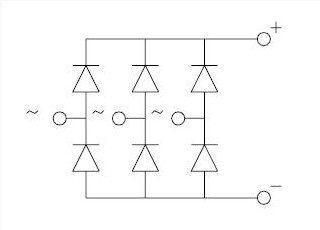

PT76S16 features: (1)Isolated Base; (2)3 Phase Bridge Circuit; (3)Designed Power Circuit Board; (4)High Surge Capability; (5)UL Recognized, File No. E187184.
