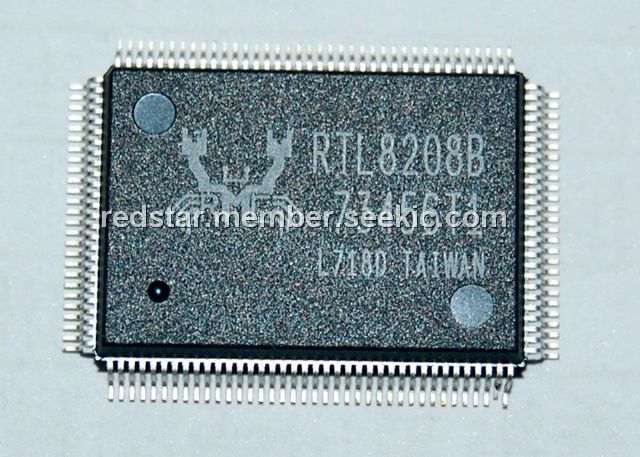

RTL8208B

single-chip, octal 10/100base-tx/fx phy transceiver, QFP128, Very low power consumption

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.65~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.65~3.50

PartNumber:: RTL8208B

Brand:: Realtek Semiconductor - Realtek | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Alex's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:RTL8208B
US $2.65 - 3.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RTL8208B is a single-port Phyceiver with an MII (Media Independent Interface)/SNI(Serial Network Interface). It implements all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-Tx Encoder/Decoder and Twisted Pair Media Access Unit (TPMAU). A PECL interface is supported to connect with an external 100Base-FX fiber optical transceiver. The RTL8208B is fabricated with an advanced CMOS process to meet low voltage and low power requirements.

Parametrics

RTL8208B absolute maximum ratings: (1)Storage Temperature: -10 +125 ℃; (2)VDDA ,VDD Supply Referenced to GND: GND-0.3 +1.98 V; (3)VDDAH,VDDO Supply Referenced to GND: GND-0.3 +3.63 V; (4)Digital Input Voltage GND: VDD+0.3 V.

Features

RTL8208B features: (1)Supports 8-port integrated physical layer and transceiver for 10Base-T and 100Base-TX; (2)Up to 8 ports support 100Base-FX (RTL8208BF-LF only); (3)Reduced 100Base-FX (RTL8208BF-LF only) interface (patented); (4)Robust baseline wander correction for improved 100Base-TX performance; (5)Complies with IEEE 802.3/802.3u; (6)IEEE 802.3u compliant auto negotiation for 10/100Mbps control; (7)Hardware controlled Flow control advertisement ability; (8)Supports RMII/SMII/SS-SMII interfaces; (9)Very low power consumption; (10)Supports Port-Pair Loopback mode (PPLPBK mode, RTL8208BF-LF only); (11)Supports two power reduction methods; (12)Power saving mode (cable detection); (13)Power down mode; (14)Power-on auto reset function eliminates the need for external reset circuits; (15)Crossover detection and auto correction; (16)Polarity detection and Auto Correction; (17)Flexible serial/scan LED display modes; (18)Cable tester for diagnosing open/short faults in attached cables; (19)128-pin QFP package; (20)1.8V/3.3V power supply; (21)0.18μm, CMOS technology.
