Product Summary

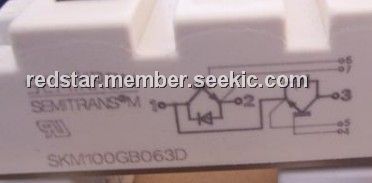

The SKM100GB063D is a superfast NPT-IGBT module. The typical applications of the SKM100GB063D include switching, switched mode power supplies, UPS, three phase inverters for servo/AC motor speed control and pulse frequencies also above 10KHz.
Parametrics
SKM100GB063D absolute maximum ratings: (1)VCES: 600V; (2)IC: 130A at Tc=25℃; 100A at Tc=70℃; (3)ICRM: 200A at tp=1ms; (4)VGES: ±20V; (5)Tvj, (Tstg): -40 to 150 (125)℃ at Toperation≤Tstg; (6)Visol: 2500V at AC 1min; (7)IF: 100A at Tc=25℃; 75A at Tc=80℃; (8)IFRM: 200A at tp=1ms; (9)IFSM: 720A at tp=10ms; sin; Tj=150℃.
Features
SKM100GB063D features: (1)N channel, homogeneous silicon structure (NPT-Non punch through IGBT); (2)low tail current with low temperature dependence; (3)high short circuit capability, self limiting if term G is clamped to E; (4)pos temp -coeff of VCEsat; (5)very low Cies, Coes, Cres; (6)latch-up free; (7)fast & soft inverse CAL diodes; (8)isolated copper bonding technology without hard mould; (9)large clearance (10mm) and creepage distances (20mm).
