Product Summary

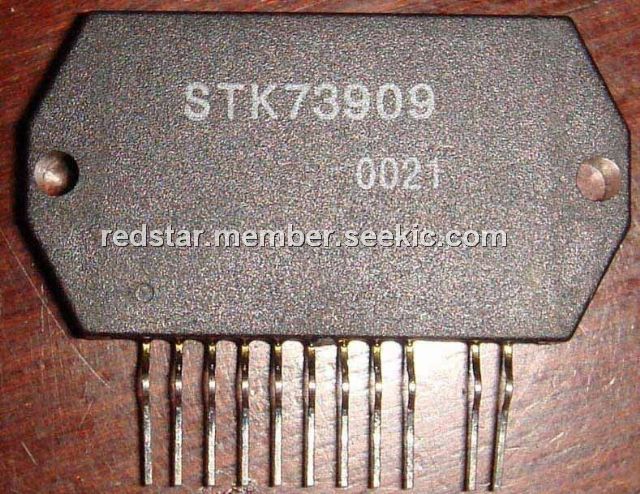

The STK73909 is a self-excitation type feedback control switching regulator. It incorporates on-chip all the power switching, amplifier, overcurrent protection and driver circuits required in a self-excitation type feedback control switching regulator. As a result, the STK73909 can be used in the design of switching power supplies with minimal number of external components. Furthernore, the adoption of MOSFET power switching elements supports a higher oscillator frequency than that possible with bipolar transistors. The STK73909 is used in CRT/CTV power supplies, office automation equipment power supplies.
Parametrics
STK73909 absolute maximum ratings: (1)Operating substrate temperature Tcmax: 115℃; (2)AC input voltage VAC: 140Vrms; (3)Operating temperature Topr: -10 to +85℃; (4)Storage temperature Tstg: -30 to +115℃; (5)Maximum output power Womax: 180W.
Features
STK73909 features: (1)Power MOSFET devices; (2)Feedback control for high output voltage precision; (3)Driver circuit on-chip; (4)Overcurrent protection circuit on-chip; (5)Pin compatible with all other devices in the same series of devices with 110 to 280W power ratings; (6)Higher oscillator frequency allows the use of smaller pulse transformers; (7)IMST substrate acts as an electromagnetic shield, making low-noise designs possible.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() STK73909 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
