Product Summary

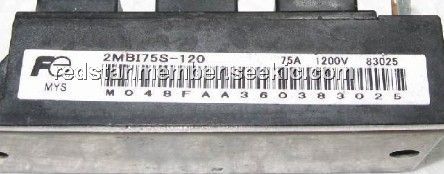

The 2MBI75S-120 is an IGBT module. The applications of it are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI75S-120 absolute maximum ratings: (1)Collector-Emitter Voltage:1200V; (2)Gate -Emitter Voltage:±20V; (3)Collector current: IC:100/75A, ICpulse:200/150A, -IC:75A, -ICpulse:150A; (4)Max. Power Dissipation:600 W; (5)Operating Temperature:+150℃; (6)Storage Temperature:-40 to +125℃; (7)Isolation voltage:2500V.
Features
2MBI75S-120 features: (1)NPT-Technology; (2)Square SC SOA at 10 x IC; (3)High Short Circuit Withstand-Capability; (4)Small Temperature Dependence of the Turn-Off Switching Loss; (5)Low Losses And Soft Switching.

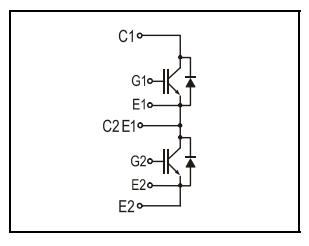

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI75S-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
