Product Summary

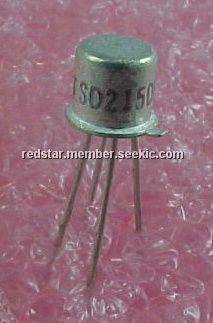

The SD215DE is a 30V analog switch driver with built-in protection diode from gate to substrate.
Parametrics
SD215DE absolute maximum ratings: (1)Drain Current: 50mA; (2)Total Device Dissipation at 25℃ Case Temperature: 1.2W; (3)Storage Temperatue Range: -65 ℃to +200 ℃; (4)Lead Temperature (1/16" from case for 10 sec.): 300℃; (5)Operating Temperature Range: -55℃ to +125℃.
Features
SD215DE features: (1)High Input to Output Isolation: 120dB; (2)Low On Resistance: 30 Ohm; (3)Low Feedthrough and Feedback Transients; (4)Low Capacitance:Input (Gate), 2.4pF typ.; Output, 1.3pF typ.; Feedback, 0.3pF typ.; (5)Built-in Protection Diode from Gate to Substrate.
Diagrams
 |
