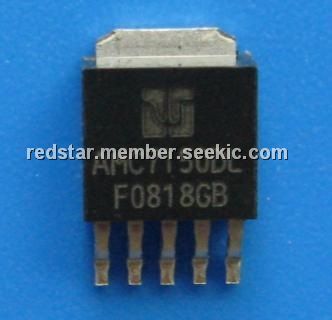

Product Summary

The AMC7150DL is a PWM power LED driver IC. The driving current from few milliamps up to 1.5A. It allows high brightness power LED operating at high efficiency from 4Vdc to 40Vdc. Up to 200KHz external controlled operation frequency. External resistor controlled the maximum output current to single LED or a LED string. The applications of the AMC7150DL include: DC/DC LED driver, Automotive, Lighting.

Parametrics

AMC7150DL absolute maximum ratings: (1)Input Voltage, VCC: -0.3V to 40V; (2)Output Voltage, OUT: -0.3V to 40V; (3)Maximum Junction Temperature , TJ: 150℃; (4)Storage Temperature Range: -40℃ to 150℃; (5)Lead Temperature (soldering, 10 seconds): 260℃.

Features

AMC7150DL features: (1)Only 5 external components required; (2)Output driving current up to 1.5A; (3)4V~40V wide operation voltage range; (4)High efficiency; (5)ESD protection HBM 2KV; (6)TO-252 5-pin power package.

Diagrams

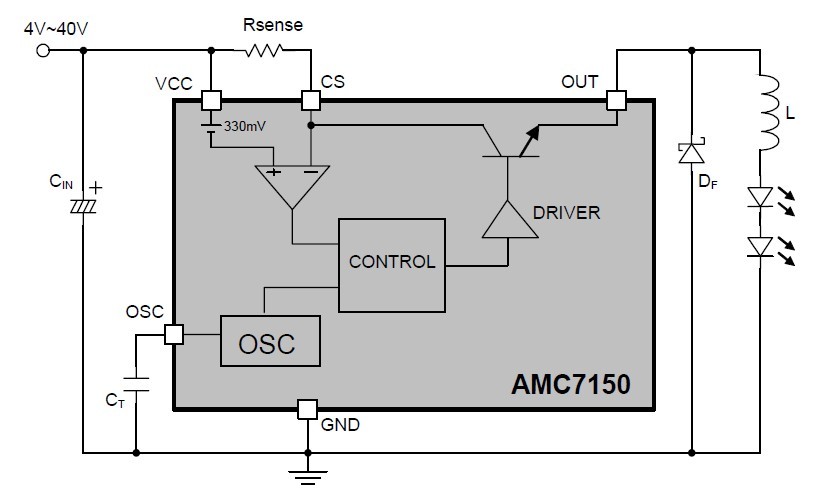

AMC7150DL block diagram
