Product Summary
The CM15TF-12H is an IGBT module. It is designed for use in switching applications. The CM15TF-12H consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking base-plate, offering simplified system assembly and thermal management. The applications of the CM15TF-12H are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM15TF-12H absolute maximum ratings: (1)Junction Temperature:–40 to +150 ℃; (2)Storage Temperature:–40 to +125 ℃; (3)Collector-Emitter Voltage (G-E SHORT):600 Volts; (4)Gate-Emitter Voltage (C-E SHORT):±20 Volts; (5)Collector Current (TC = 25℃):15 Amperes; (6)Peak Collector Current:30 Amperes; (7)Emitter Current (TC = 25℃):15 Amperes; (8)Peak Emitter Current:30 Amperes; (9)Maximum Collector Dissipation:100 Watts; (10)Mounting Torque, M5 Mounting:1.47 to 1.96 N.m; (11)Weight:150 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.):2500 Vrms.
Features
CM15TF-12H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

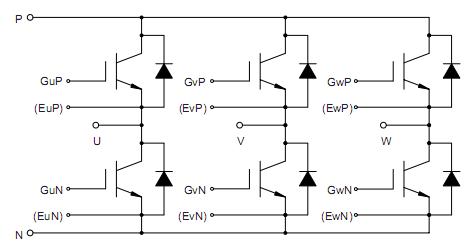

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM15TF-12H |
|
IGBT MOD 6PAC 600V 15A H SER |
Data Sheet |
Negotiable |
|
||||
