Product Summary

The CXA1571S is a RF amplifier for CD player. The device is developed for CD player usage. This IC integrateds an APC citcuit and RF, focus error and tracking error amplifiers for the 3-spot optical pick up output. The CXA1571S is suitable for compact disc players.

Parametrics

CXA1571S absolute maximum ratings: (1)supply voltage, VCC-VEE: 12V; (2)operating temperature, Topr: -20 to 75℃; (3)storage temperature, Tstg: -65 to 150℃; (4)allowable power dissipation, PD: 900mW.

Features

CXA1571S features: (1)low power consumption (at ±5V, 60mW); (2)built-in APC circuit; (3)both single +5V and dual ±5V power supply operations possible; (4)APC circuit and various amplifiers gain interchangeable with CXA1081.

Diagrams

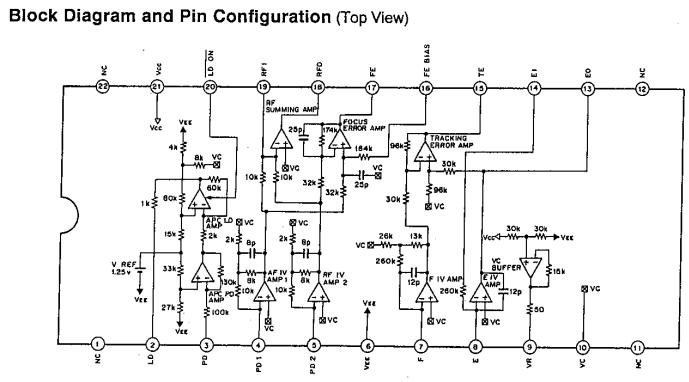

CXA1571S block diagram

CXA10
CXA10
