Product Summary
The OV5610 is a high performance 5.17 mega-pixel CAMERACHIPS for digital still image and video camera products. The device incorporates a 2592 × 1944 image array and an on-chip 10-bit A/D converter capable of operating at up to 4 frames per second(fps) in full resolution. The OV5610 is used in digital still cameras, PC camera/dual mode, video conference, machine vision, security cameras, biometrics.
Parametrics
OV5610 specifications: (1)Array size QSXGA: 2592×1944; SXGA: 1280×960; VGA: 640×480; 1280×480; HF: 320×200; 1280×200; (2)Power supply: 3.3VDC/1.8VDC(±5%); (3)Power requirements active: 40mA; standby: 10μA; (4)Electronics QSXGA: up to 1998:1; SXGA: up to 978:1; VGA: up to 488:1; HF: up to 208:1; (5)Output format: 10-bit digital GRB raw data; (6)Lens size: 1/1.8; (7)Len chief ray angle: 15°.
Features
OV5610 features: (1)Optical black level calibration; (2)Video or snapshot operations; (3)Programmable/auto exposure and gain control; (4)Programmable/auto white balance control; (5)Horizontal and vertical sub-sampling(4:2 and 4:2); (6)High frame rate output mode; (7)Programmble image window/zooming/panning; (8)Variable frame rate control; (9)On-chip R/G/B channel and luminance average counter; (10)Internal/external frame synchronization; (11)Serial bus interface; (12)Power-on reset and power-down modes.

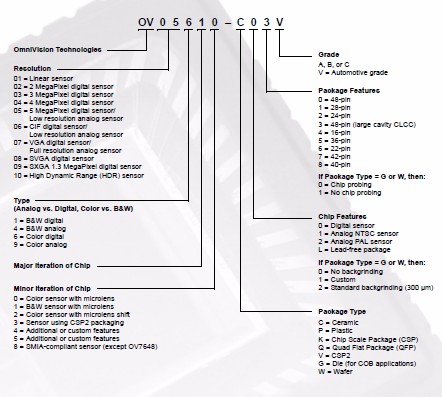

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

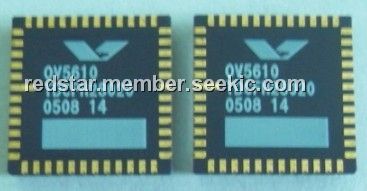

 OV5610 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
OV5610 |
Other |
|
Data Sheet |
Negotiable |
|
||||
