Product Summary

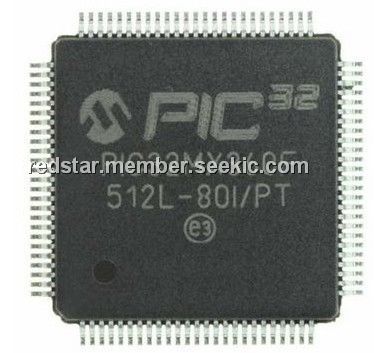

The PIC32MX360F512L-80I/PT is a high-performance 80 MHz mips-based 32-bit flash microcontroller.

Parametrics

PIC32MX360F512L-80I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +85℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (4)Voltage on any combined analog and digital pin and MCLR, with respect to VSS: -0.3V to (VDD + 0.3V); (5)Voltage on any digital only pin with respect to VSS: -0.3V to +5.5V; (6)Voltage on VDDCORE with respect to VSS: -0.3V to 2.0V; (7)Maximum current out of VSS pin(s): 300 mA; (8)Maximum current into VDD pin(s): 300 mA; (9)Maximum output current sunk by any I/O pin: 25 mA; (10)Maximum output current sourced by any I/O pin: 25 mA; (11)Maximum current sunk by all ports: 200 mA; (12)Maximum current sourced by all ports: 200 mA.

Features

PIC32MX360F512L-80I/PT features: (1)Operating Voltage Range of 2.3V to 3.6V; (2)32K to 512K Flash Memory (plus an additional 12KB of Boot Flash); (3)8K to 32K SRAM Memory; (4)Pin-Compatible with Most PIC24/dsPIC Devices; (5)Multiple Power Management Modes; (6)Multiple Interrupt Vectors with Individually Programmable Priority; (7)Fail-Safe Clock Monitor Mode; (8)Configurable Watchdog Timer with On-Chip Low-Power RC Oscillator for Reliable Operation.

Diagrams

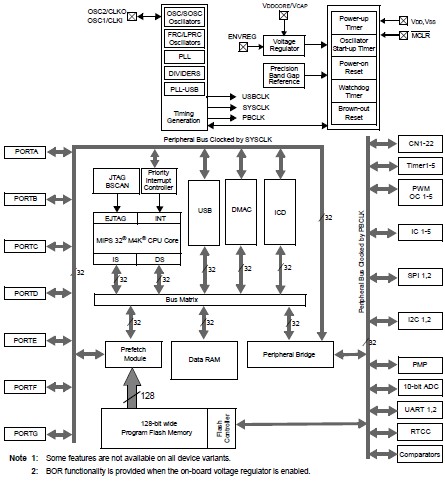

PIC32MX360F512L-80I/PT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC32MX360F512L-80I/PT
PIC32MX360F512L-80I/PT
Microchip Technology
32-bit Microcontrollers (MCU) 512KB FLASH 32KB RAM 80MHz 10-B ADC
Data Sheet
0-1: $5.42
1-10: $4.34
10-25: $3.98
25-100: $3.60
