Product Summary
The SSD1906QT2 is a graphics controller with built-in 256Kbyte SRAM display buffer, supporting color and mono LCD. The SSD1906QT2 can support a wide range of active and passive panels, and interface with various CPUs. The advanced design, together with integration of memory and timing circuits make a low cost, low power, single chip solution to meet the handheld devices or appliances market needs, such as Pocket/Palm-size PCs and mobile communication devices. The SSD1906QT2 features low-latency CPU access, which supports microprocessors without READY/WAIT# handshaking signals.
Parametrics
SSD1906QT2 absolute maximum ratings: (1)IOVDD Supply Voltage: VSS - 0.3 to 4.0 V; (2)VIN Input Voltage: VSS - 0.3 to 5.0 V; (3)VOUT Output Voltage: VSS - 0.3 to IOVDD + 0.5 V; (4)TSTG Storage Temperature: -65 to 150 ℃; (5)TSOL Solder Temperature/Time: 260 for 10 sec. max at lead ℃.
Features
SSD1906QT2 features: (1)Display Rotate Mode : 90°, 180°, 270°counter-clockwise hardware rotation of display image; (2)Virtual display support: displays image larger than the panel size through the use of panning and scrolling; (3)Floating Window Mode: displays a variable size window overlaid on background image; (4)2 Hardware Cursors (for 4/8/16 bpp) : simultaneously displays two cursors overlaid on background image; (5)Double Buffering/Multi-pages: provides smooth animation and instantaneous screen updates.

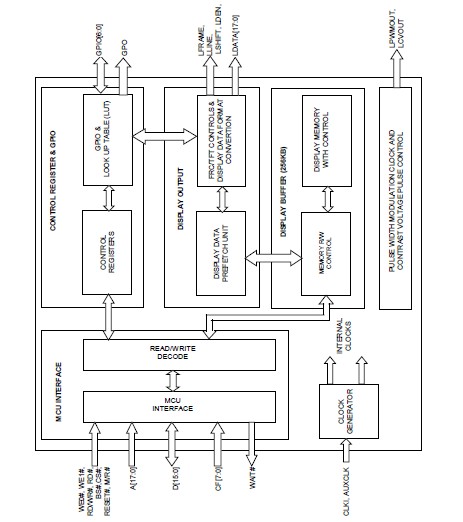

Diagrams
 |
