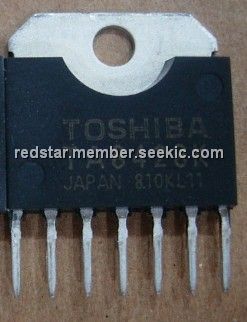

Product Summary
The TA8428K is Full Bridge Driver IC for Brush Motor Rotation Control. Forward Rotation, Reverse Rotation, Stop and Braking operations are available. Thermal Shutdown and Short Current Protector are provided.
Parametrics
TA8428K absolute maximum ratings: (1)Supply Voltage: 30 V; (2)Input Voltage: -0.3 to VCC V; (3)Output Current: IO (PEAK) =3.0( Note 1) A, IO (AVE.)=1.5 A; (4)Power Dissipation: 1.25( Note2) W, 10.0 (Note3) W; (5)Operating Temperature: -30 to 85 ℃; (6)Storage Temperature: -55 to 150℃.
Features
TA8428K features: (1)Output Current : TA8428K (S) 1.5 A (AVE.), 3.0 A (PEAK); (2)4 modes (forward / reverse / short brake and stop) are available with 2 TTL compatible inputs control; (3)Free wheeling diodes are equipped; (4)Multi protection system driver (Thermal shutdown and short current protector).

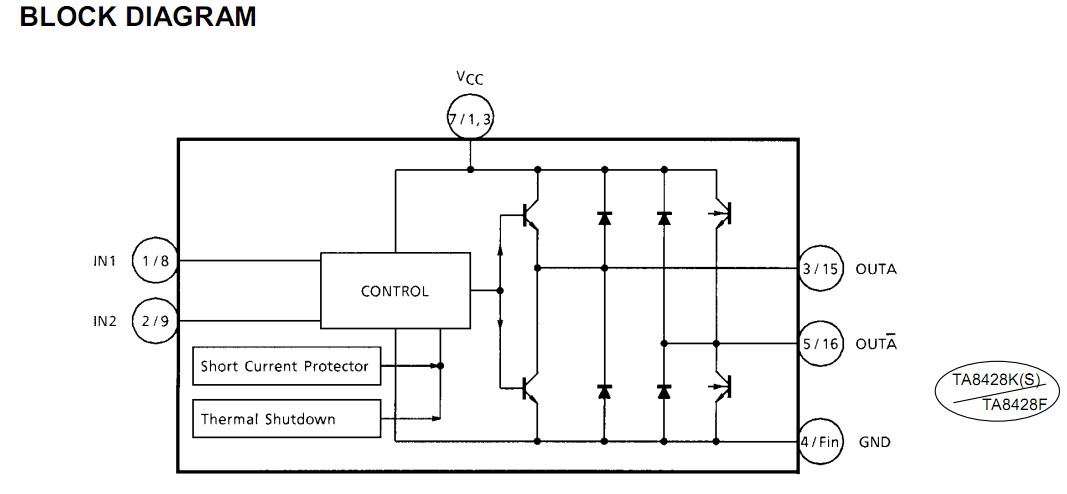

Diagrams
