Product Summary

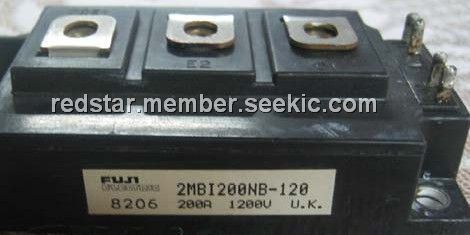

The 2MBI200NB-120 is an IGBT module suitable for High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2MBI200NB-120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200 V; (2)Gate -Emitter Voltage, VGES: ± 20 V; (3)collector current, Continuous, IC: 200A; 1ms, IC PULSE: 400A; Continuous, -IC: 200A; 1ms, -IC PULSE: 400A; (4)Max. Power Dissipation, PC: 1500 W; (5)Operating Temperature, Tj: +150℃; (6)Storage Temperature, Tstg: -40 ~ +125℃; (7)Isolation Voltage A.C. 1min., Vis: 2500 V.
Features
2MBI200NB-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

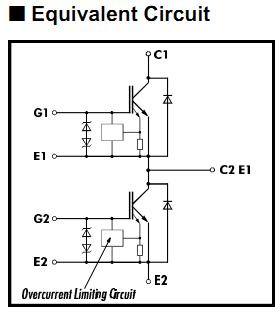

Diagrams
