Product Summary
The 7MBI40N-120 is a 1200V IGBT module.
Parametrics
7MBI40N-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Gate -Emitter Voltage: ±20V; (3)Collector Power Dissipation: 120W; (4)Repetitive Peak Reverse Voltage: 1200V; (5)Average Forward Current: 1A; (6)Surge Current: 50A; (7)Operating Junction Temperature: +150℃; (8)Storage Temperature:- 40℃ to +125℃; (9)Isolation Voltage: 2500V.
Features
7MBI40N-120 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function(4 to 5 Times Rated Current).

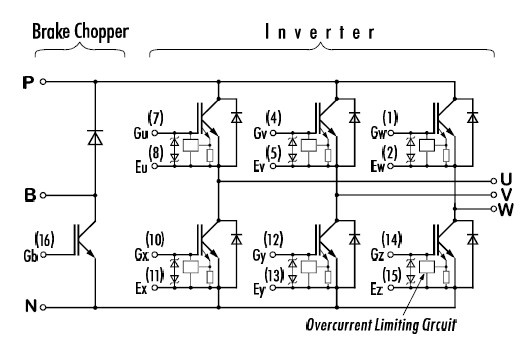

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 7MBI40N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
