Product Summary
The PXT3904 is an NPN switching transistor in a SOT89 plastic package. The applications of it is high-speed switching.
Parametrics
PXT3904 absolute maximum ratings: (1)collector-base voltage:60 V; (2)collector-emitter voltage:40 V; (3)emitter-base voltage:6V; (4)collector current (DC):100 mA; (5)peak collector current:200 mA; (6)peak base current:100 mA; (7)total power dissipation:1.2 W; (8)storage temperature:-55 to +150℃; (9)junction temperature:150℃; (10)operating ambient temperature:-55 to +150℃.
Features
PXT3904 features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

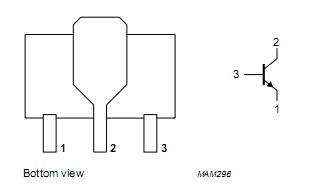

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PXT3904 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PXT3904 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PXT3906 |
Other |
|
Data Sheet |
Negotiable |
|
||||
