Product Summary

The SKD62/16 is a power bridge rectifier.

Parametrics

SKD62/16 absolute maximum ratings: (1)ID: 70A; (2)500A; (3)i2t: 1250 A2s; (4)VF: 1.8V; (5)VTO: 0.85V; (6)Tvj: -40 to 150℃; (7)Tstg: -40 to 125℃.

Features

SKD62/16 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)blocking voltage up to 1800V; (4)High surge currents; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognized, file no E63 532.

Diagrams

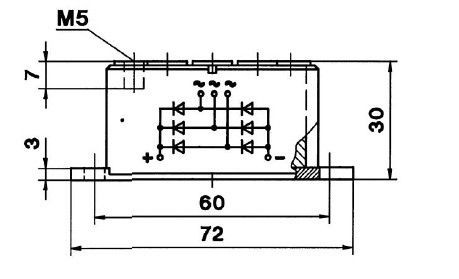

SKD62/16 diagram
